Document AI Platform

Turns invoices, forms and IDs into clean structured data without anyone keying it in.

AI-powered document processing platform that automatically extracts, classifies and validates data from invoices, forms, IDs and PDFs using a multi-engine OCR + NLP pipeline running on async Celery workers.

Document AI Platform interface
Industry
Enterprise / Back-office Automation
Role
AI & Backend Engineer
Team
Team project — about half of the repository’s commits are mine
Type
AI System
Year
2025

01

Overview

Document AI Platform is an enterprise-grade solution that turns unstructured documents into clean, structured data. It automatically classifies document types and extracts fields from invoices, forms, identification documents and PDFs — at high accuracy and a fraction of the manual effort.

The processing core is an asynchronous pipeline: FastAPI accepts uploads and dispatches work to Celery workers (brokered by Redis) so large or scanned documents never block a request. Each document flows through an OCR stage (PaddleOCR with OpenCV pre-processing), layout reconstruction, and template-driven field extraction with Gemini, with Google Document AI / Vision available as a high-accuracy path.

A Next.js dashboard lets operators monitor pipelines, review extracted data and manage workflows, with audit trails for compliance. The whole system is containerized behind nginx for production deployment.

02

Business challenge

Enterprises spend countless hours manually keying data from invoices, forms and IDs — slow, error-prone and expensive, with large scanned PDFs making naive processing time out.

Before this system

Data was keyed by hand from invoices, forms and identity documents — slow, error-prone and expensive.
Large scanned PDFs timed out when processed inside a web request.
No single extraction engine handled every kind of document well.

03

Solution

Built an async, multi-engine document pipeline: FastAPI dispatches uploads to Celery workers, which run OCR (PaddleOCR + OpenCV), classification and template-driven extraction with Gemini, with Google Document AI available for tough documents.

What it does

Automatic document classification with category templates
OCR for scanned pages (PaddleOCR) with OpenCV pre-processing and layout reconstruction
Template-driven field extraction with Gemini
Invoice, form and ID document extraction
Async processing on Celery workers — no blocked requests
Real-time processing dashboard
Batch processing support
API-first integration
Audit trail & compliance
High accuracy (95%+)

04

My contribution

Role
AI & Backend Engineer
Team
Team project — about half of the repository’s commits are mine
Scope of my work
API, extraction pipeline, connectors, dashboard and reviewer screens, deployment
Built API endpoints, data models and services in the FastAPI backend.
Worked on the Celery task pipeline that carries a document from OCR through extraction to delivery.
Implemented source and destination connectors for cloud storage, file servers and databases.

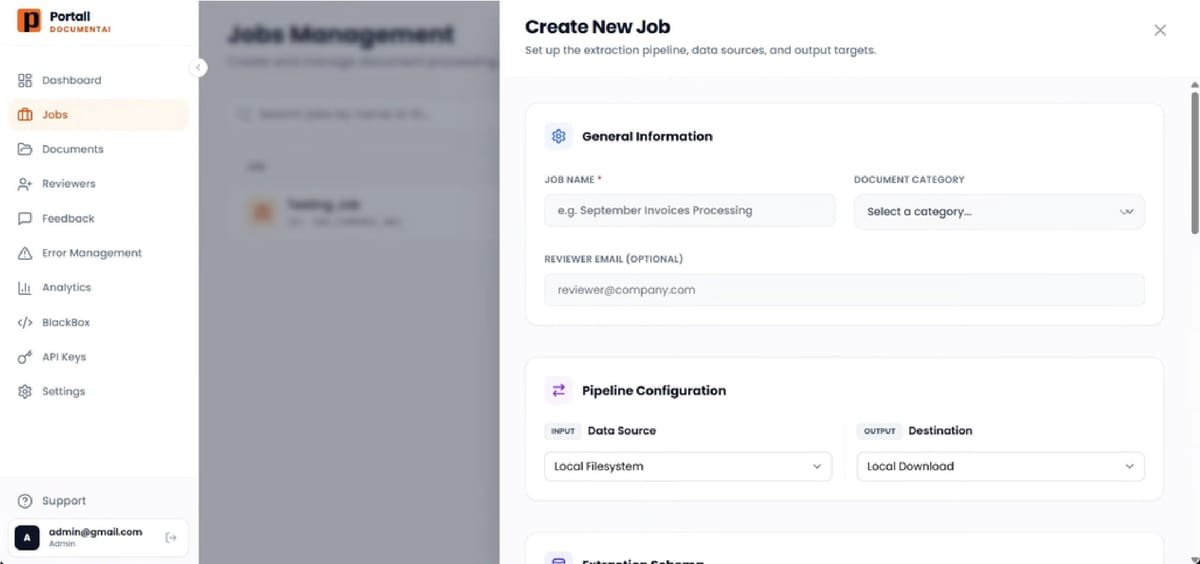

Built dashboard and reviewer screens in the Next.js frontend, including the job-creation flow.
Maintained the Docker Compose stack the platform is deployed with.
Other engineers contributed to the same codebase; this page describes the system as a whole and my part in it.

05

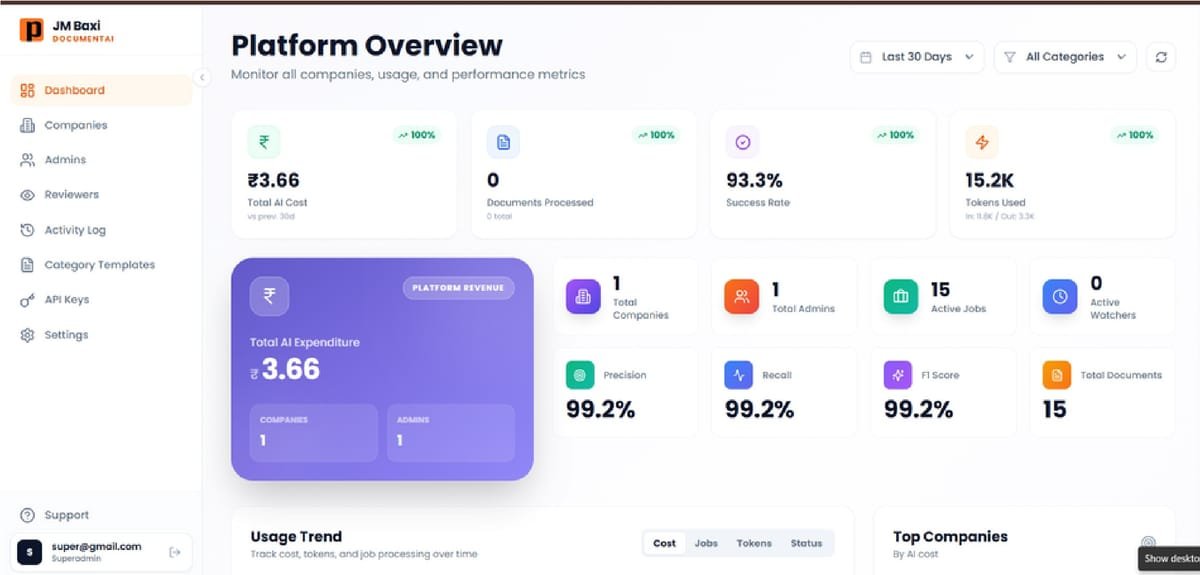

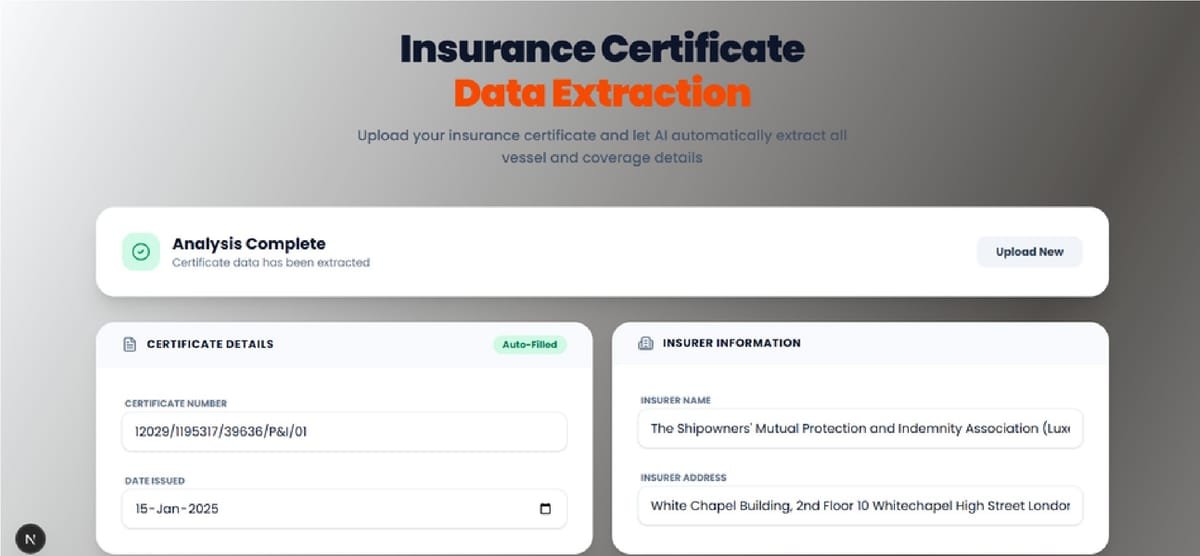

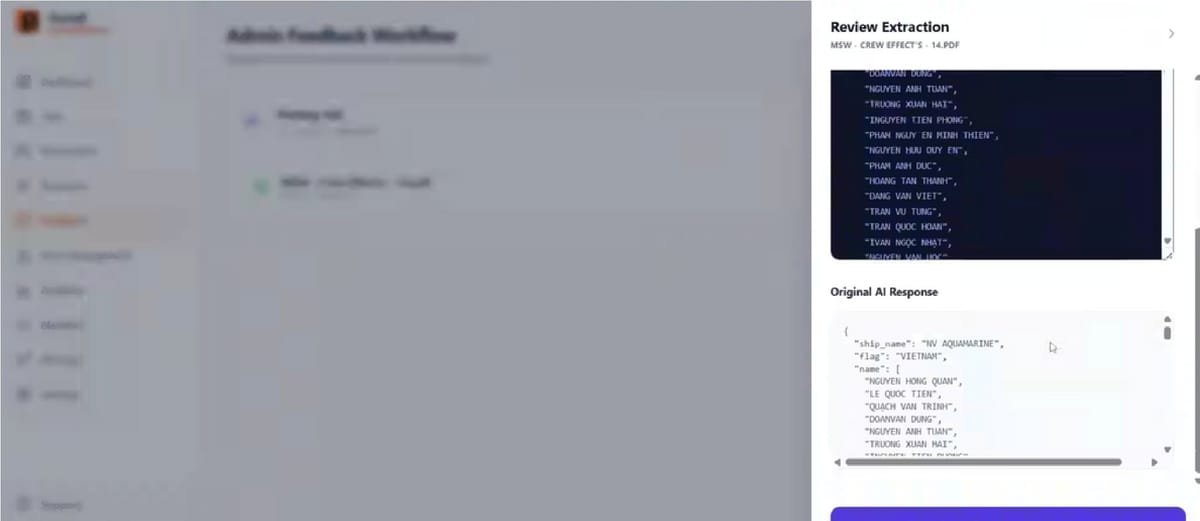

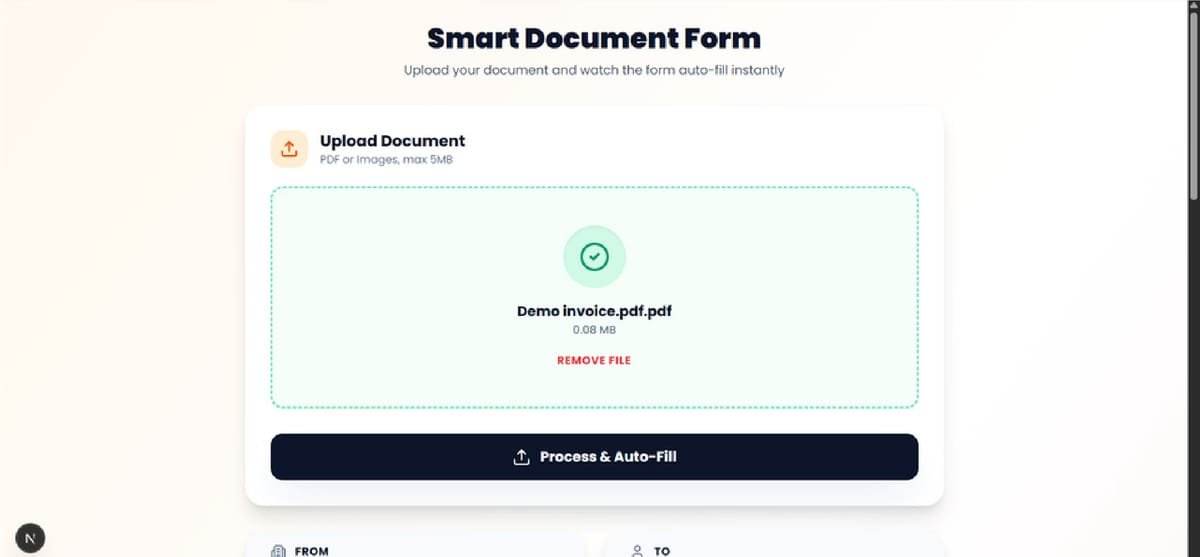

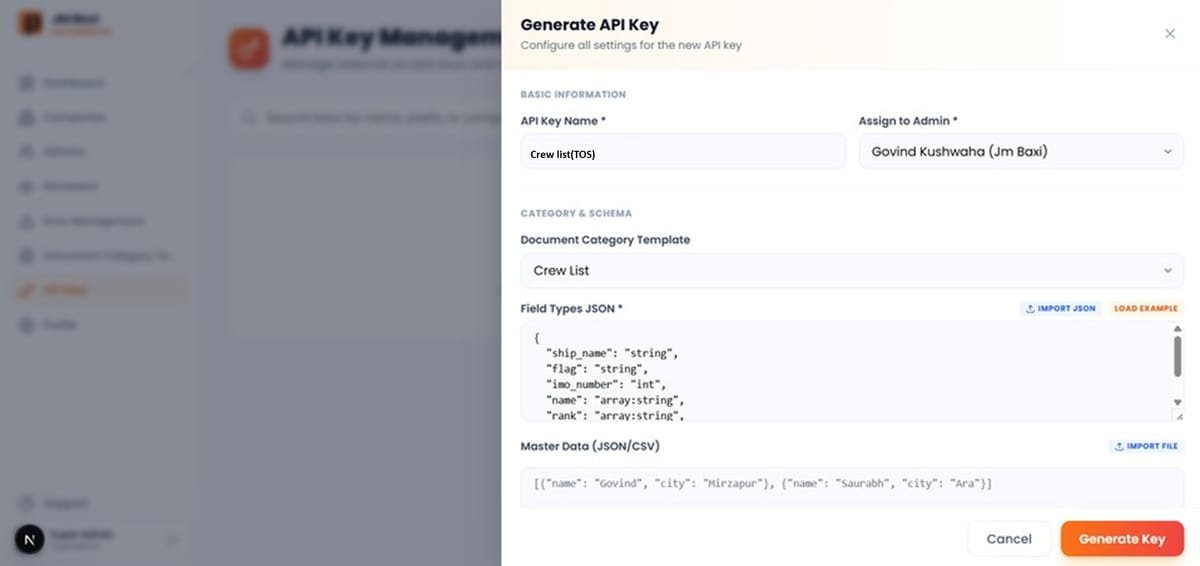

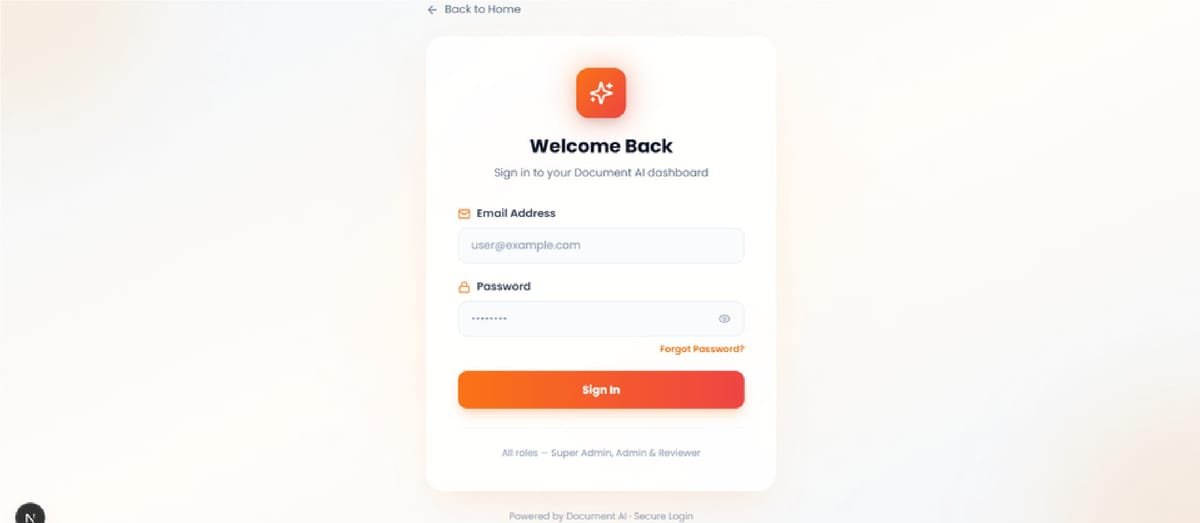

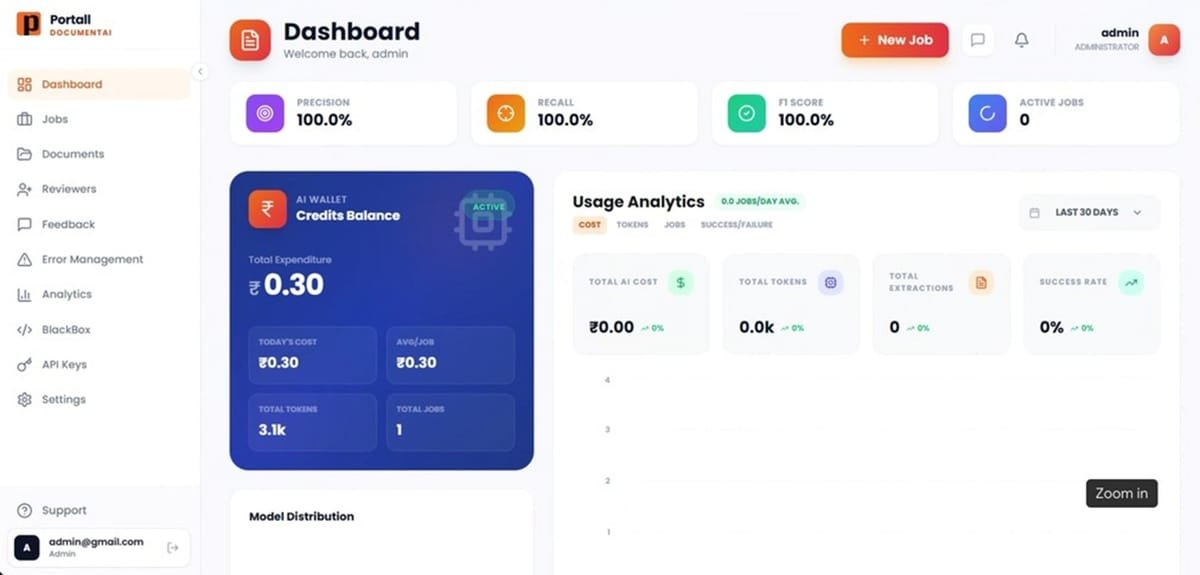

Product screenshots

Screens from the application itself. Select any image to view it full size.

06

Architecture

From an uploaded file to validated, delivered dataDocuments enter from the dashboard, an API-key request or a watched source connector. FastAPI creates a job and enqueues it on Redis; Celery workers read each document directly or through PaddleOCR, pass the text to Gemini for template-driven field extraction, then validate, review and deliver the result.IntakeAPI & queueWorkersExtractionVerify & deliverprioritypollenqueueenqueuetexttext + layoutneeds reviewdeliverDashboard uploadNext.js · batch jobsAPI-key requestExternal systemsSource connectorsS3 · Azure Blob · DriveSFTP · SQL · MongoDBFastAPICreates job + tasksJWT · API keysRedis queueshigh_priority · defaultCelery beatSource watcherStale-task reaperCelery workersOne task at a timeSoft + hard time limitsDirect text parseDOCX · XLSX · CSV · TXTGemini extractionCategory-template fieldsBudgeted retriesScanned-page OCRpdf2image → PaddleOCROpenCV · layout rebuildDocument AI · VisionGoogle Cloud extractorsReviewer workspaceAssigned per jobValidationMaster-data checksField-level metricsResult deliveryConnector export · email

Swipe sideways, or expand to zoom.

From an uploaded file to validated, delivered data

Three ways in, one pipeline. API-key jobs go to a high-priority queue so integrations are not held up behind bulk dashboard uploads. Workers read digital files directly and scanned pages through PaddleOCR with layout reconstruction, and Gemini extracts the fields defined by the document’s category template. Results are validated against master data and written back to the configured destination, with reviewers assigned to a job checking anything flagged for review.

  • Interface
  • Service
  • AI / ML
  • Data store
  • External system

How it fits together

  1. 01FastAPI API layer accepts uploads and enqueues jobs; Celery workers (Redis broker) run the heavy pipeline asynchronously with a scheduler for recurring tasks
  2. 02OCR stage runs PaddleOCR with OpenCV pre-processing and rebuilds page layout; category templates drive classification and field mapping
  3. 03Extraction stage sends the reconstructed text to Gemini with the category template; a validation service checks the extracted fields against master data
  4. 04Google Document AI / Vision available as a high-accuracy path; cloud storage via S3 (boto3)
  5. 05Next.js dashboard for monitoring, review and workflow management; PostgreSQL for data and audit trails
  6. 06Dockerized and served behind nginx for production

Data and API design

  1. 01A job is one batch and a task is one document; a job’s status is reconciled from the terminal states of its tasks.
  2. 02Category templates define which fields are extracted for each document type.
  3. 03API keys let external systems submit work, and those jobs route to the priority queue.
  4. 04Reviewers are assigned per job through a many-to-many relation between jobs and users.
  5. 05A WebSocket manager pushes job status to the dashboard as documents move through the pipeline.

07

Engineering challenges

01

A document must never stay “in progress” forever

The difficulty
Extraction calls an external model that can stall, hit a rate limit or be cut off mid-request. A worker that dies after marking a document as being worked on leaves it in that state permanently.
Why it mattered
A job is finished only when every document in it reaches a terminal state, so one stuck document holds up the whole batch and whoever is waiting for it.
What was built
Layered time budgets, each strictly inside the next: a per-attempt request timeout, a total retry budget, a Celery soft limit that raises inside the task so it can mark itself failed and reconcile its job, a hard limit that kills the worker as a last resort, and a scheduled reaper that recovers tasks whose worker died before its cleanup ran.
Why this approach
Each layer covers the failure the one before it cannot. A soft limit cannot interrupt a blocked native call, and a hard kill never runs cleanup code — so the limits are ordered deliberately, with defaults that match the production values.
Result
Every document ends as completed or failed. A job cannot hang in a phase status, and a failure is visible rather than silent.

02

Integrations should not queue behind bulk uploads

The difficulty
Dashboard users submit large batches, while a system calling the API with a key expects a prompt answer. On a shared queue the API request waits behind everything uploaded before it.
Why it mattered
To the calling system, an integration that times out waiting is a broken integration.
What was built
Two Celery queues. API-key jobs route to a high-priority queue and dashboard jobs to the default one; workers consume the priority queue first, with a prefetch of one so a worker never reserves a backlog of low-priority work.
Why this approach
Routing by task name keeps the pipeline code identical for both paths — only the queue differs — and needs no second worker fleet.
Result
API-submitted documents are picked up ahead of queued dashboard batches.

03

Scanned pages lose their structure when read as plain text

The difficulty
OCR returns words with coordinates, not rows and columns. Flattened into a stream of text, a table or a two-column form loses the relationships a field extractor depends on.
Why it mattered
The extraction model can only be as right as the text it is given.
What was built
Scanned PDFs are rasterised page by page, oversized pages are scaled down, PaddleOCR reads each page, and the output is rebuilt into a spatial layout before it reaches the model. Office and text files skip OCR and are parsed directly.
Why this approach
Reconstructing layout once, up front, means every later step sees the page the way a person would read it.
Result
Scanned documents arrive at extraction with their structure intact, and digital ones never pay the cost of OCR.

04

Documents live in other people’s systems

The difficulty
Source files sit in cloud buckets, shared drives, SFTP servers and databases, and results are expected back in those same places.
Why it mattered
A pipeline that only accepts manual uploads still leaves someone moving files by hand.
What was built
A connector interface with implementations for Amazon S3, Azure Blob Storage, Google Drive, SFTP, SQL databases, PostgreSQL, MongoDB, HTTP endpoints and local folders. A scheduled watcher picks up new files for continuous jobs, and finished results are delivered to the job’s target.
Why this approach
One interface keeps the pipeline unaware of where a file came from or where its result is going.
Result
A job can watch a source and write to a destination with no manual transfer in between.

08

Technology stack

Frontend
Next.js
Backend
FastAPIPythonCelery
Data
RedisPostgreSQL
AI & Processing
PaddleOCROpenCVGeminiTransformersGoogle Document AI
Infrastructure
DockerNginx

Why these choices

FastAPI + Celery
Extraction runs outside the request, so an upload returns immediately however large the document is.
Redis
Broker for the two priority queues.
PaddleOCR + OpenCV
Reads scanned pages on CPU inside the platform’s own containers.
Gemini
Extracts the fields a category template asks for from the reconstructed text.
Google Document AI · Vision
Available as alternate extractors.
PostgreSQL
Jobs, tasks, templates, users and audit data.
Next.js
Operator dashboard and reviewer workspace.
Docker + Nginx
One image for API, worker and scheduler, fronted by a single reverse proxy.

09

Security & scale

Security

JWT authentication with hashed passwords, and API keys for system-to-system access.
Role-restricted areas: reviewer and administrator screens are separate from the standard dashboard.
Only the reverse proxy is on the edge network; the database and broker are reachable on an internal network only.
The Redis broker requires a password.
Errors are logged to the database and surfaced to administrators as notifications.

Scalability

Worker concurrency is a deployment setting, so throughput scales by adding worker processes.
Workers take one task at a time, which keeps long documents from starving short ones.
Worker processes are recycled after a fixed number of tasks, bounding memory growth from loaded models.
The API runs four Uvicorn workers under Gunicorn.

10

Business impact

Every figure is labelled with where it comes from: a measurement, an estimate, a design target, or a fact of the system as built.

95%+

Extraction accuracy

Share of fields extracted correctly, as reported for the project.

Estimate

~10×

Faster than manual entry

Processing speed compared with keying the same documents by hand.

Estimate

~85%

Less manual document work

Reduction in hand-keying once documents flow through the pipeline.

Estimate

9

Source and target connectors

Cloud storage, file servers, databases and HTTP endpoints.

System fact

2

Priority queues

API-key jobs are routed ahead of dashboard batches.

System fact

What changed

Data entry
BeforeFields keyed by hand from invoices, forms and IDs.
AfterFields extracted against a category template, then validated.
Large scanned PDFs
BeforeTimed out when processed inside a request.
AfterProcessed on background workers; the upload returns immediately.
Document variety
BeforeNo single engine handled every document type well.
AfterEach document is read by the path that suits it — direct parse or OCR.

Reduced document processing time by ~85% and lifted data accuracy to 95%+, turning a manual back-office bottleneck into an automated, auditable pipeline.

11

Project status

Live2025
Running at document.portall.in.
Deployed as a Docker Compose stack: Nginx, Next.js frontend, FastAPI backend, Celery worker, Celery beat, Redis, PostgreSQL and a one-shot migration job.
Model caches and uploaded files are kept on named volumes so a redeploy does not discard them.

What I took from it

  • Async pipelines (FastAPI + Celery) are the right shape for unpredictable, heavy document workloads.
  • Multi-engine OCR with template-driven routing beats betting on a single model.

An asynchronous document pipeline that reads files from wherever they live, extracts the fields a template defines, validates them and writes the result back — built so that a slow model call or a dead worker can fail a document but never strand it.
