Case studyIndustrial AI SupportDelivered

Fontys — Hybrid AI Troubleshooting Platform

Lets an operator fix equipment themselves, and hands them to a live expert the moment the SOP runs out.

A production troubleshooting platform that turns Excel SOPs into an AI guidance chatbot, then escalates to live human technical support with real-time agent assignment — across web and a Flutter mobile app.

Fontys — Hybrid AI Troubleshooting Platform interface
Industry
Industrial Equipment / Support
Role
Architect & Full-Stack Engineer
Type
AI System
Year
2025

01

Overview

Fontys is a hybrid AI + human-assisted troubleshooting system for industrial equipment support. It ingests Excel-based SOPs (error codes, diagnostic steps, diagrams) as its knowledge base and provides an AI chatbot that walks operators through step-by-step resolutions, rendering diagrams and images inline.

When the AI can't resolve an issue, the platform escalates to human technical support with real-time agent assignment, a managed support queue with timeout and reassignment logic, and concurrent multi-agent support with presence tracking.

The same feature set is delivered across a Next.js web app (user + agent dashboard) and a native Flutter mobile app, both talking to a FastAPI backend over REST and WebSockets.

02

Business challenge

Equipment troubleshooting knowledge lived in static Excel SOPs that operators couldn't use effectively, and there was no clean path to escalate from self-service to a human expert when the SOP ran out.

Before this system

Troubleshooting knowledge lived in static Excel SOPs that operators could not use effectively.
There was no clean way to move from self-service to a human expert when the SOP ran out.

03

Solution

Built a hybrid platform: an AI chatbot executes SOP steps from an ingested knowledge base; when it can't resolve, the request enters a managed queue and is assigned in real time to an available human agent — identically on web and Flutter mobile.

What it does

Excel SOP ingestion as a structured knowledge base
AI chatbot with step-by-step SOP execution
Inline diagrams and images in web + mobile
Human support escalation with real-time agent assignment
Support queue with timeout and auto-reassignment
Concurrent multi-agent support with presence tracking
Web (user + agent dashboard) and native Flutter mobile
JWT auth and error-code lookup/logging

04

My contribution

Role
Architect & Full-Stack Engineer
Scope of my work
Backend, web application and mobile application
Designed the platform as one FastAPI backend serving a web application and a mobile application.
Built the ingestion pipeline that turns Excel SOP workbooks into a structured knowledge base.
Built the chatbot that walks an operator through SOP steps, with diagrams shown inline.
Built the Support Manager: the queue, agent presence, timeouts and automatic reassignment.
Built the Next.js user chat and agent dashboard, and the Flutter mobile application with the same features.

05

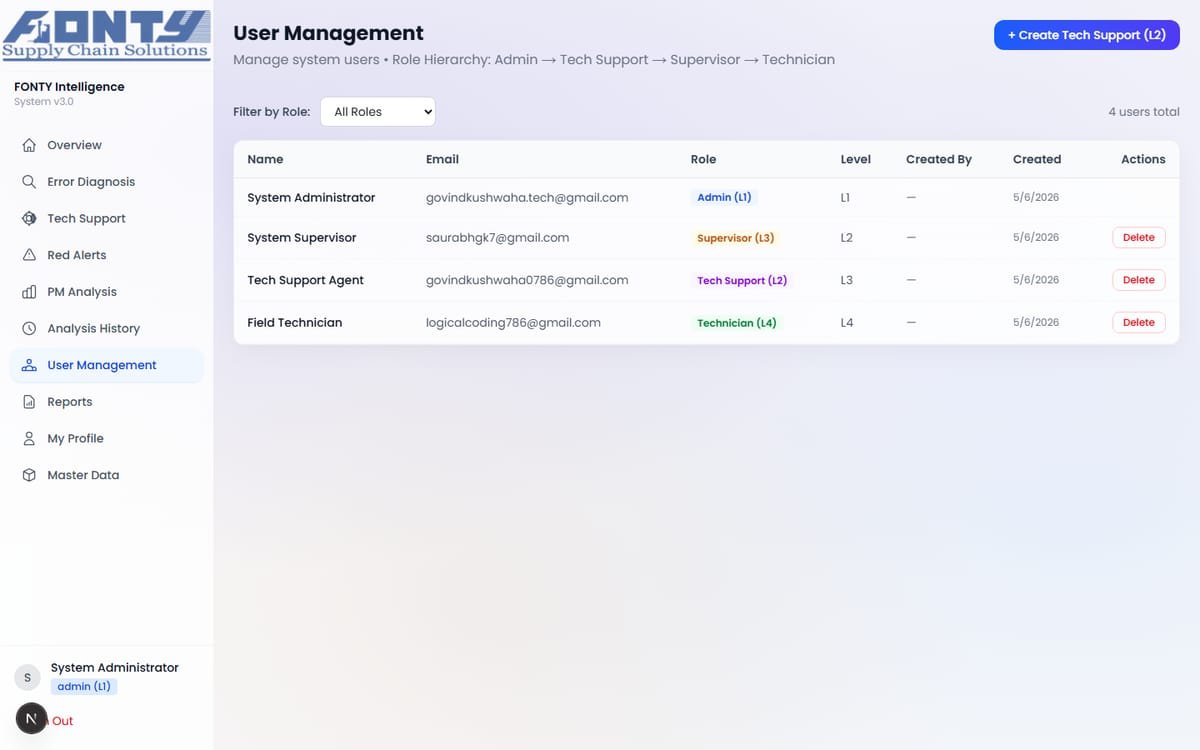

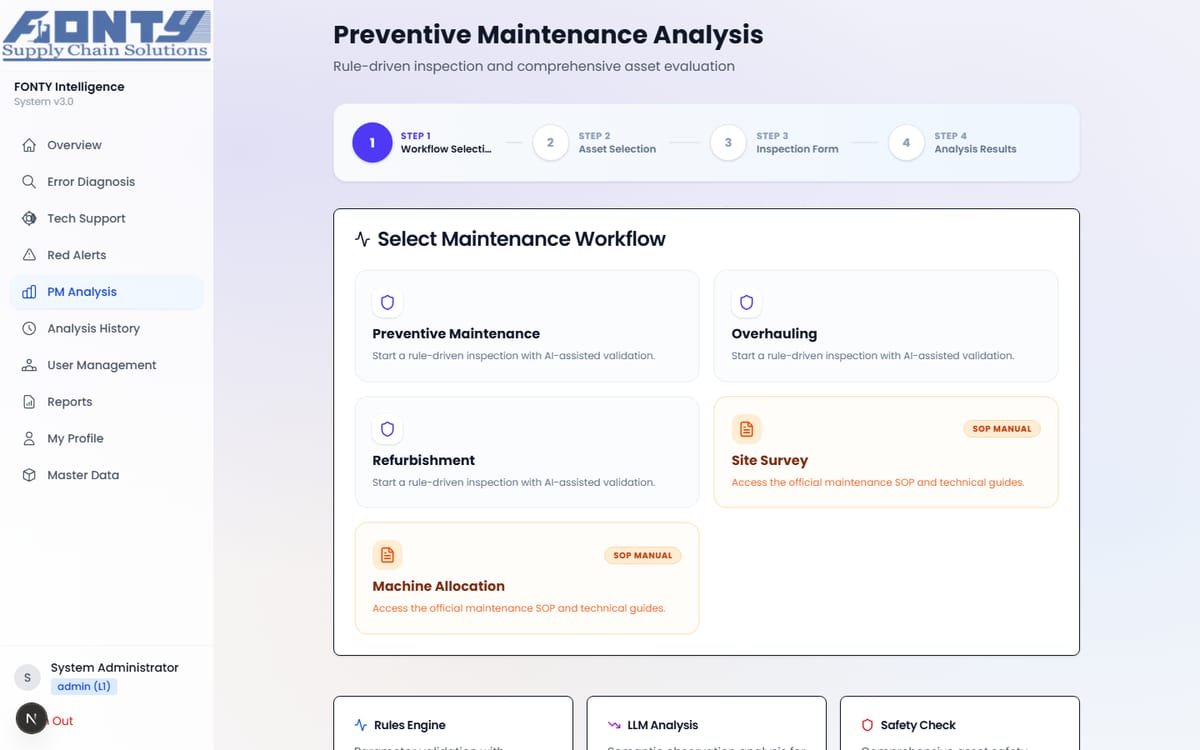

Product screenshots

Screens from the application itself. Select any image to view it full size.

06

Architecture

System architecture
Guided self-service with a managed hand-off to a personOperators use a Next.js web app or a Flutter app to talk to a chatbot API over REST and to a Support Manager over a per-session WebSocket. Support agents connect to the Support Manager over an agent WebSocket channel. Excel SOP workbooks are parsed by an ingestion service into knowledge-base tables in PostgreSQL, which also stores requests and agents.People & sourcesFastAPI backendPostgreSQLWebSocketWebSocketRESTuploadescalatereadwriteSupport agentsNext.js agent dashboardOperatorsNext.js web appFlutter mobile appSOP workbooksExcel: codes · stepsDiagramsSupport ManagerQueue · presenceTimeout · reassignmentChatbot APISessions · error lookupStep-by-step guidanceSOP ingestionExcel → structured KBSupport tablesRequests · agentsKnowledge baseError codes · stepsDiagram references

Swipe sideways, or expand to zoom.

Guided self-service with a managed hand-off to a person

The chatbot walks an operator through the steps of an ingested SOP. When those steps run out, the request moves to the Support Manager, which owns the queue: who is online, who is assigned, how long a request has waited, and when to hand it to someone else. Operators and agents each hold their own WebSocket channel, so assignment and messages arrive without polling.

  • Interface
  • Service
  • AI / ML
  • Data store
  • External system

How it fits together

  1. 01FastAPI backend exposes REST endpoints for chatbot sessions, SOP upload, error lookup and auth, plus WebSocket endpoints for live support
  2. 02WebSocket channels: an agent channel and a per-session user channel route real-time assignment and messaging
  3. 03A Support Manager owns queue lifecycle — agent presence, timeouts and auto-reassignment
  4. 04Excel SOPs are ingested into a structured knowledge base (error codes, steps, diagrams)
  5. 05Next.js web app serves both the user chat UI and the agent dashboard; a Flutter app delivers identical features on mobile; PostgreSQL persists errors, steps, requests and agents

Data and API design

  1. 01REST endpoints cover chatbot sessions, SOP upload, error lookup and authentication.
  2. 02Two WebSocket channels: one for agents and one per user session, carrying assignment and messages.
  3. 03PostgreSQL stores error codes, steps, support requests and agents.

07

Engineering challenges

01

Knowledge trapped in spreadsheets

The difficulty
Error codes, diagnostic steps and diagrams were spread across Excel workbooks written for people to read, not for software to follow.
Why it mattered
A chatbot can only guide an operator through a procedure it can address step by step.
What was built
An ingestion pipeline parses the SOP workbooks into a structured knowledge base of error codes, steps and diagram references that the chatbot executes in order.
Why this approach
Keeping Excel as the authoring format meant the people who own the SOPs did not have to change how they work.
Result
Operators get step-by-step guidance with the relevant diagram inline, from the same documents the support team already maintains.

02

Handing over to a person without dropping anyone

The difficulty
When the SOP runs out the conversation has to reach an available agent, and agents come and go, get busy, or never respond.
Why it mattered
A request that waits unanswered in a queue is worse than having no chatbot at all.
What was built
A Support Manager owns the queue lifecycle over WebSockets: it tracks agent presence, assigns requests in real time, times out an unanswered assignment and reassigns it automatically.
Why this approach
Treating the queue as a system of its own, rather than a side effect of chat, is what makes time-outs and reassignment possible.
Result
A waiting operator is always picked up, and several agents can work concurrently.

03

The same experience on web and mobile

The difficulty
Operators use both a browser and a phone, and the two had to offer the same guidance and the same escalation.
Why it mattered
Features that exist on only one platform split the support process in two.
What was built
Both clients consume one backend contract over REST and WebSockets.
Why this approach
With the behaviour in the backend, each client only has to present it.
Result
Feature parity between the Next.js web application and the Flutter application.

08

Technology stack

Frontend
Next.jsFlutter
Backend
FastAPIPythonWebSocketsJWT
Data
PostgreSQL
AI & Processing
Excel Ingestion

Why these choices

FastAPI
REST endpoints and WebSocket channels from one service.
WebSockets
Assignment and messages reach operators and agents without polling.
PostgreSQL
Knowledge base, support requests and agents.
Next.js
User chat and agent dashboard in one web application.
Flutter
The same features on Android and iOS.
Excel ingestion
SOPs stay in the format their owners already maintain.

09

Security & scale

Security

JWT authentication.
Operators and agents connect on separate channels.

Scalability

Concurrent multi-agent support with presence tracking.
New SOPs extend the knowledge base without code changes.

10

Business impact

Every figure is labelled with where it comes from: a measurement, an estimate, a design target, or a fact of the system as built.

Guided

Self-service for known issues

The chatbot walks operators through ingested SOP steps.

System fact

Real-time

Escalation to an agent

Assignment, time-out and reassignment over WebSockets.

System fact

Web + mobile

Feature parity

One backend contract behind both clients.

System fact

What changed

SOP knowledge
BeforeStatic Excel sheets operators could not use effectively.
AfterA structured knowledge base the chatbot follows step by step.
Escalation
BeforeNo clean path from self-service to an expert.
AfterA managed queue that assigns, times out and reassigns.

Operators get instant, guided self-service for known issues and a smooth real-time escalation to human experts for the rest — the same experience whether they're on the web or the mobile app.

11

Project status

Delivered2025
Delivered as a FastAPI backend with a Next.js web application and a Flutter mobile application.

What I took from it

  • Hybrid AI + human-in-the-loop needs the queue/presence logic designed as a first-class system, not an afterthought.
  • Sharing one backend contract lets web and Flutter reach feature parity quickly.

A support platform that lets software handle what the SOPs already answer and makes sure a person takes over, reliably, when they do not.
